#221 - Schneider How to load a configuration file on the Modicon Switch

Check the compatibility of the profiles with the switch (reference document: System Guide Hardware in a Complex M580 System):

Set the IP and device name on the switch using for instance the "Ethernet Switch Configurator v2.3.03":

Open the switch's web-browser and login (admin / private)

Set local time:

Clear the configuration on the Load/Save and then "Back to factory":

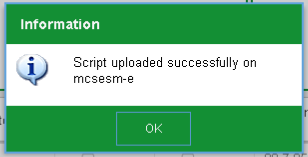

Load the configuration file from script (*.cli):

Select the file:

See the changes applied in the Report > System Logs:

Dump the log Logs Report > Global > Click on "Download support information":
