#211 - Schneider Configuration of the managed switches

- Connect to the switch via Ethernet cable or USB-C

- From "Ethernet Switch Configurator" scan the network and identify the MAC address of the switch. Set the desired IP address and click on WWW to open the web interface.

- Using the USB-C cable, try the default web page: 91.0.0.100

- A ring topology, redundancy, needs a managed switch

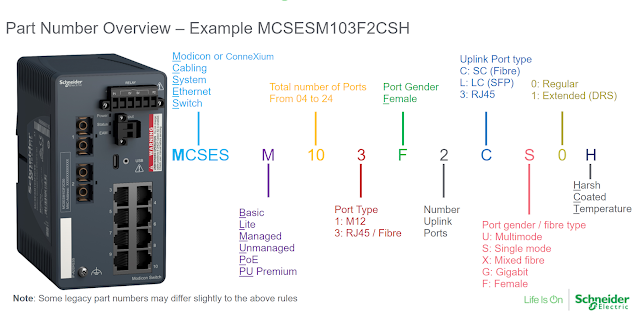

- Nomenclature:

Example: MCSESM103F2CS1: Extended Managed Switch 8TX/2FX Single Mode. RSTP enabled by default on all ports. Dual RSTP capability (dual rings after profiles configuration).

- Redundancy protocols: MRP (Media Redundancy Protocol), RSTP (Rapid Spanning Tree Protocol), Hiper-Ring.

- Configuration: RM (Ring Manager), SRM (Sub Ring Manager), Ring Coupling.

Example: Login the Switch, Click on Switching menu, Click on L2-Redundancy, Configure Ports of Ring, Configure role of Ring Manager, Save changes.

Note: To configure an MRP ring, STP feature must be disabled on ports. MRP can be combined with RSTP for architectures with primary and secondary rings.

- DRS (Dual Ring Switch) profiles. Search link.

Note that there are configuration files for the two types of Switch, the Connexium (.CFG) and the Modicon (.CLI).
