There
are two ways to connect to a NORD inverter, which are via Ethernet or
Serial. In this post we will show you how to make this connection via
Ethernet, read the parameters of the Inverter and edit the parameters Online,
make a backup / restore of the data of an Inverter and make a jog in manual.
Abrir o programa Nordcon
e configurar para o scan da rede:
It
is possible to enter a range of IP addresses to scan, for example from node 0
to node 50:
After
scanning the network, click on the device in the Ethernet tree and it will be
possible to read the current parameters of the Inverter. On this screen we
are Online and it is possible to edit the parameters Online.

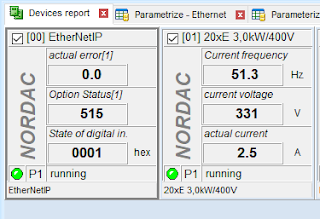

The
Devices report tab shows the current values of frequency, voltage and current
Making
a backup / restore: Right click on the Inverter and select Parameter transfer
FROM device (backup) or TO device (restore). The file created is of type *
.ndbx.
Jogging
in manual: right click on the Inverter and select Remote control. Note: to
enable the jog, the motor must be stopped (0Hz).
Using
the commands in the window that opens, the current frequency is shown and it is
possible to use the commands (buttons below) to activate manual mode, increase
or decrease the frequency and change the direction of rotation:
